Satellite-connected remote monitoring
GMIS designs and manufactures rugged satellite-enabled data acquisition hardware and a cloud dashboard that lets you monitor fluid levels, flows, leaks, pressure and images from sites with no power, no phone line and no cell coverage.
Products
One platform, several form factors — from a simple pond-level monitor to a full HMI-connected site with cameras.

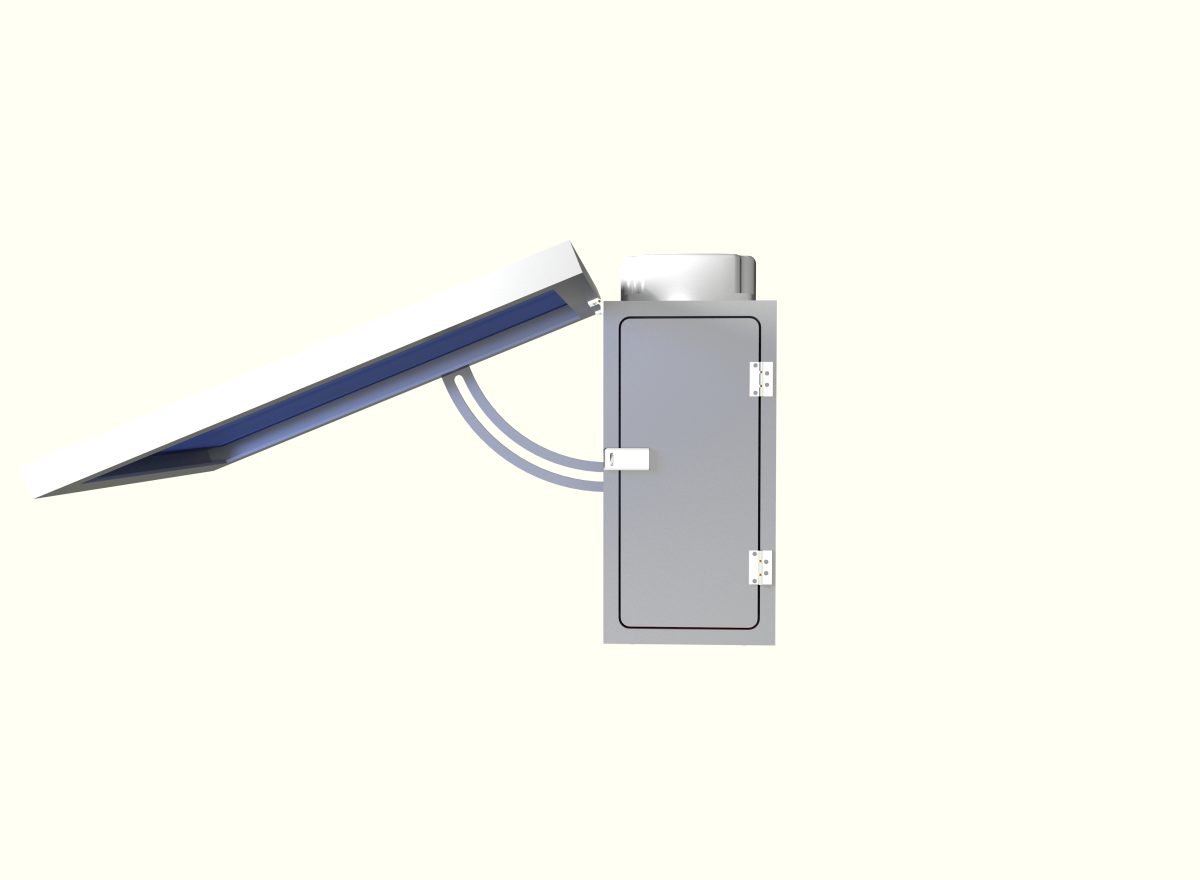

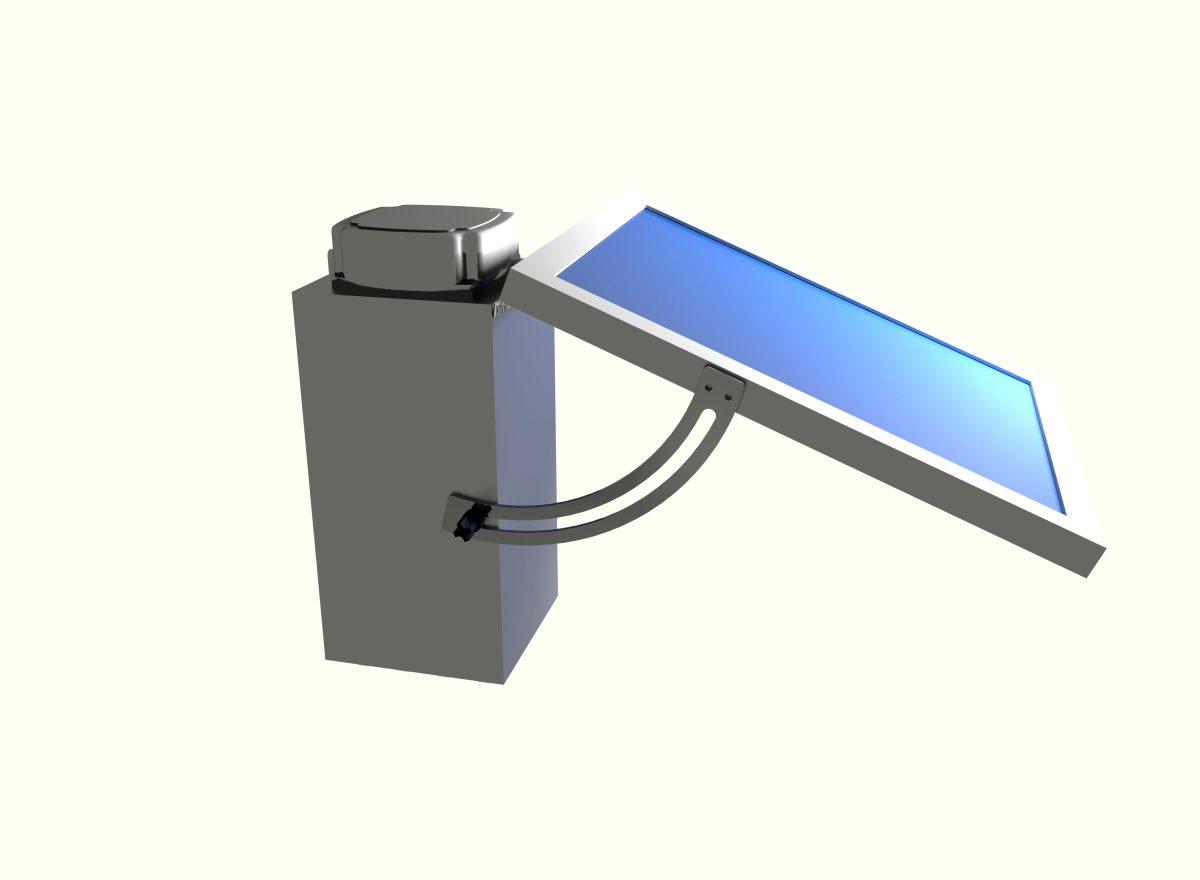

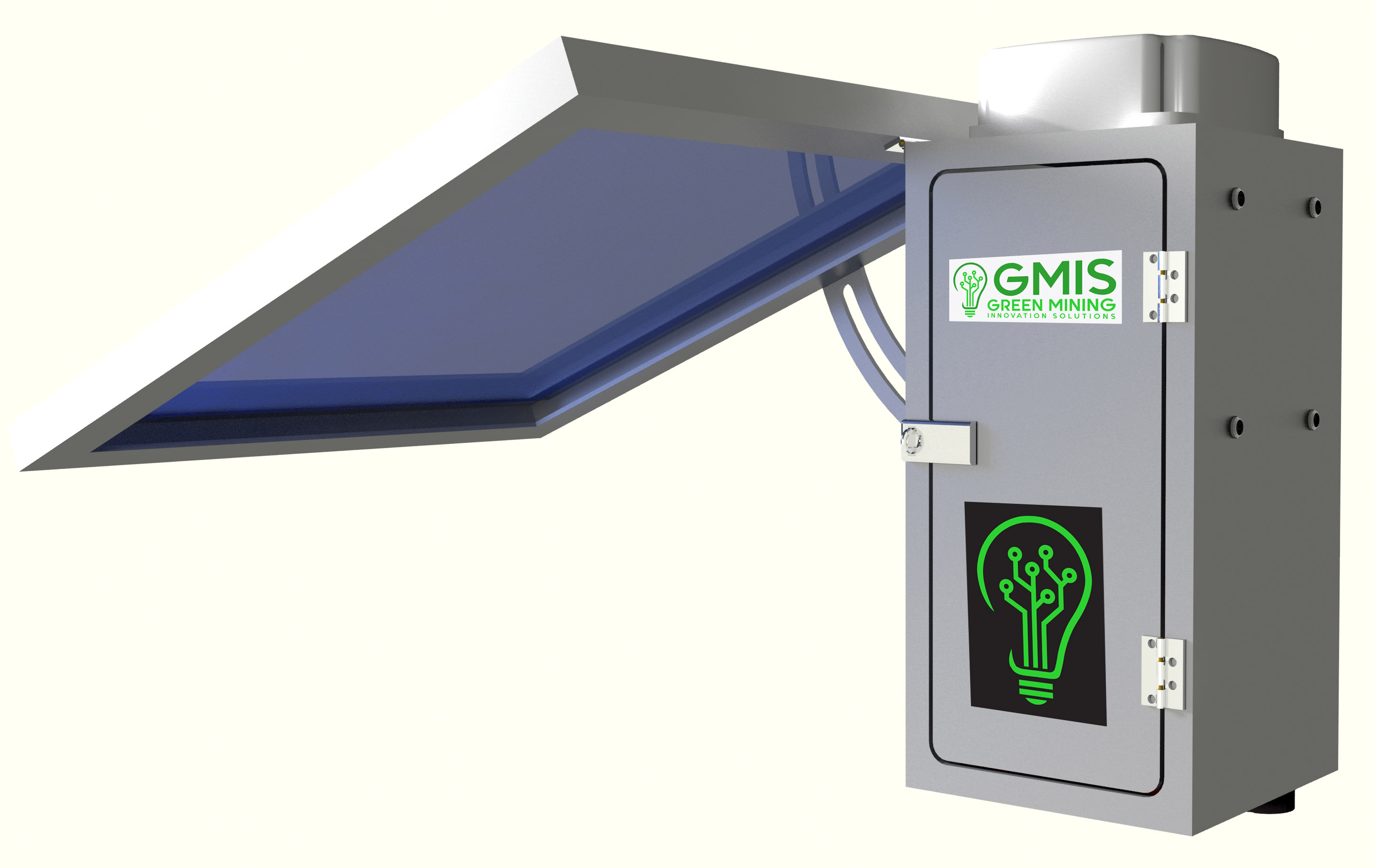

Level & Flow Monitor / Remote Acquisition Device
A satellite-connected monitor designed for sites where reliable data is critical — storage vessels, ponds, pressure lines, flow meters and leak detection.
Fluid level & leak detection
A turn-key kit for tailings ponds and storage dams. Hydrostatic depth sensors, configurable tank geometry and volume formulas, and SMS/email alarms when levels move outside safe bounds.
High-resolution remote imaging
Larger satellite units pair data acquisition with scheduled JPEG capture — up to ~30 images per cycle and 40 analog channels, plus Modbus data and HMI CSV ingest for sites with RedLion Graphite and similar controllers.
How it works
Inmarsat IDP modems, remotely programmable over the satellite link. No cell coverage required.
Typical 18–24 months on a single Li-ion pack at 15-minute scan / 2-hour upload. No solar panel needed — batteries are swap-and-recharge.
Tune the scan interval, upload cadence, alarm set points and probe ranges from the web dashboard — no site visit.
SMS and email notifications on leak, high-water, overflow and low-battery events. Daily CSV summaries delivered to your inbox.
Every sample is archived and exportable as CSV. Plot trends, share with regulators, or pipe into your own analytics.
Each customer gets a sub-domain (e.g. yourco.gmis.io), your logo, and user-level access control.
Cloud dashboard
The GMIS dashboard ingests data from every device you own — small 4–20 mA pond monitors, full HMI sites, and camera nodes — and shows them on a single partner-branded web application.
Applications
Continuous level, volume and leak monitoring with user-defined pond geometry.
Fluid levels in remote storage tanks with accurate volume conversion.
PSIG/PSIA pressure sensing and battery-powered Modbus flow meters.
Alarm-triggered satellite sends so you know within minutes, not days.
Scheduled high-resolution image capture at unpowered sites.
Emailed-CSV ingest from RedLion Graphite and compatible HMIs.
Whether it's a single pond or a network of remote monitoring nodes, we'll scope the hardware, get it on the dashboard and have you watching live data in days — not months.
